Attribute Logger

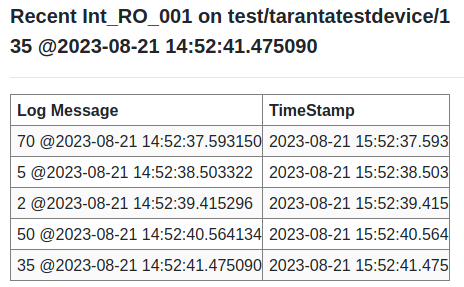

The widget shows a value coming from an attribute in a log format with or without the timestamp.

Widget setting

The following image shows an example of a widget setting.

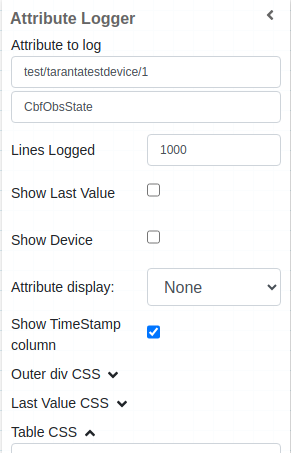

It is possible to customize the widget settings from the inspector panel (in edit mode), as shown below:

Input value	Description
Device	Type in a device name (or * to list all devices)
Attribute	Once a device is selected, type in an attribute name (or * to list all available attributes)
Lines Logged	Set the number of lines logged
Show Last Value	Allows the user to choose whether the last value is displayed or not
Show Device	Displays the device name when enabled
Show Tango Database Name	Displays the tango database name when enabled
Attribute Display	Select the Label, Name, or None for the attribute
Show TimeStamp Column	display timestamp of values when enabled
Outer Div CSS	Write custom CSS for the outer div. The syntax is the same as standard CSS used in HTML files
Last Value CSS	Write custom CSS for the last value. The syntax is the same as standard CSS used in HTML files
Table CSS	Write custom CSS for the table. The syntax is the same as standard CSS used in HTML files
